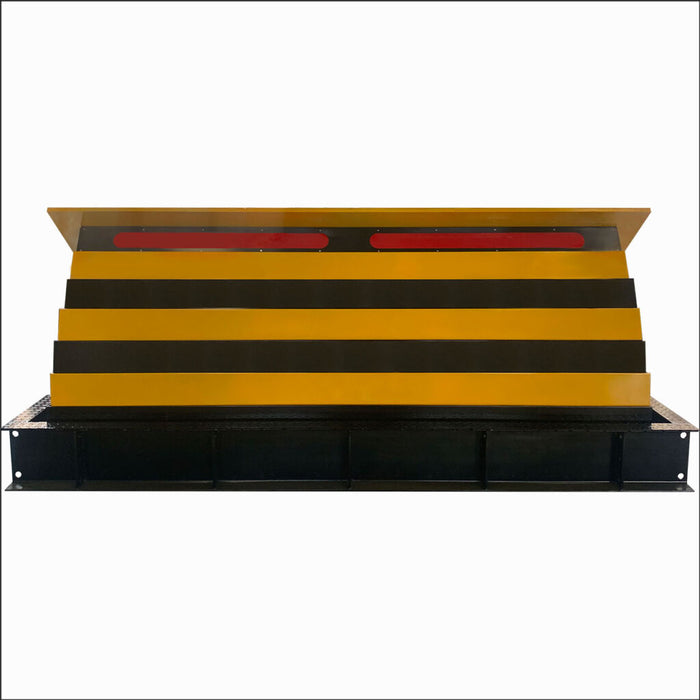

Shallow Mount K12 M50 Hydraulic Road Blocker BC501-1000 has excellent result in crash-test according IWA 14-1 & PAS 68 standard. The road blocker test resulted in the vehicle being stopped within the aperture with Zero Penetration, the blocker remained fully functional after crash tested.

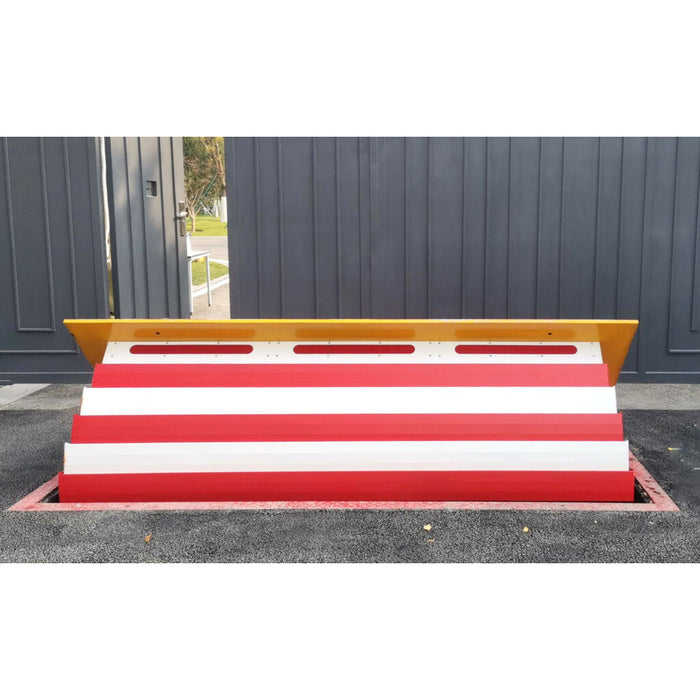

The Anti-Terrorist High Security Shallow Mount Road Blockers provides a high level of security against unauthorized vehicle access, we designed especially for entrance points that have a threat of vehicle attack or for the ones that have high security requirements.
Dimension: (Intercept width+190mm)L x 1974mmW x 300mmH(Depth)
Intercept Height: 1000mm
Intercept Width: 3M – 4M – 5M – 6M
Depth: 300mm
Top plate thickness: 25mm
Rising Time: 4-6s
Rated Power: 4KW for 3M & 4M, 5.5KW for 5M
Operating Temperature: -40°C~+70°C (FOR LOW TEMPERATURESSEE THE HEATING RESISTANCE)
Impact Tested: IWA & PAS, 7500KG / 80KMH, equal ATSM K12/M50
Impact Result: ZERO Penetration
AVAILABLE ITEMS:
Emergency fast raise system
Emergency buttons with lock down
Accumulator systems for hydraulic operation in power failure conditions
Access and intercom systems
UPS backup for the electrical system
Interlocking systems to give air-lock type protection on sites with higher threat levels
Inductive loop systems
Traffic lights and back indications systems
Integral inset warning lights in
A3 steel cover plate with anti-slip coating
E.F.O. emergency start-up circuit (about 1.5 seconds)
Equipment for manual operation
Heat-resistant
Traffic light with two lights (green-red)
Loop inductive detector
Inductive loop
